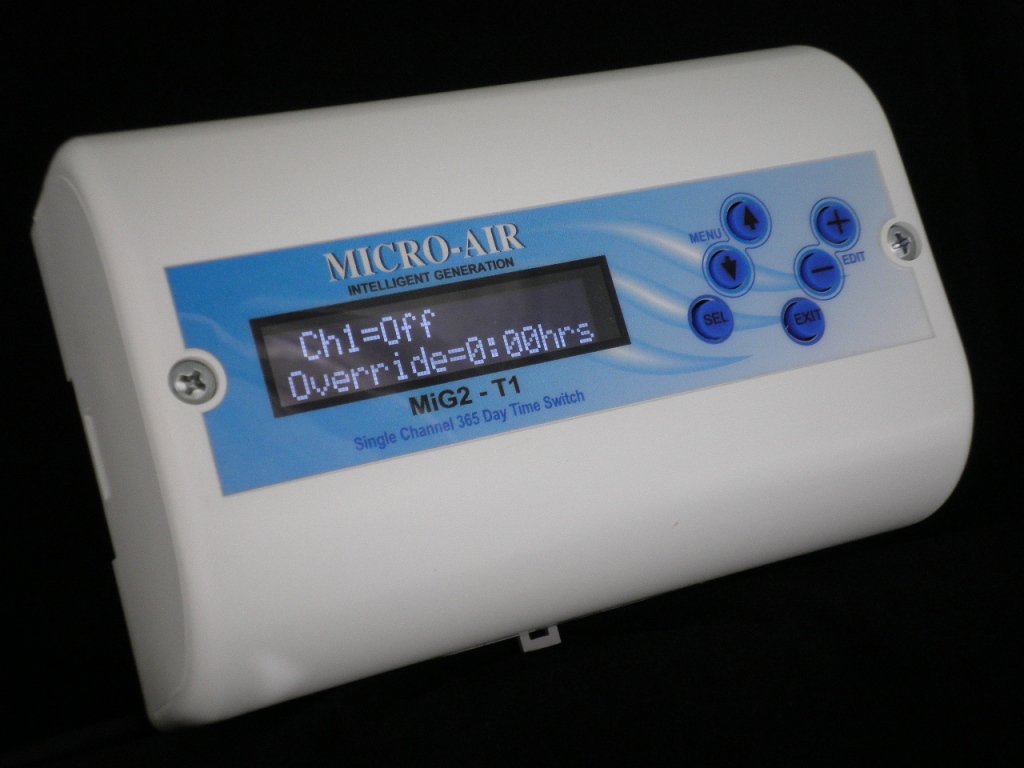

Mig2-T1

Mig2-T1

Versatile fully programmable 365 day time switch.

365 day time switch
Up to 2 after hours access push buttons
Energy saving optimised start
Up to 12 single holidays
Up to 4 block holidays
Energy saving economy cycle
Briliant easy to read high contrast OLED dispaly
Easy, fast programming with free “EasyMig” PC software
Extreme temperature detection. Air conditioning is forced on outside “ON” times

The Mig2 series devices offer many time saving features. 2 parts connectors for easy and fast wiring and for quick removal and re-installation; 24Vac or 240Vac operation. Easy cover removal; positive cover fixing; web site and phone help.

  • Power Supply
    • 230Vac
  • Power Supply
    • 230Vac / 30mA @ 50/60Hz or 24Vac / 300mA @ 50/60Hz
  • Relay Contacts
    • Voltage: Rated to 240V AC
  • Current:
    • 10 Amps (resistive loads)
  • Ambient Temperature
    • 5ºC to 40ºC
  • Humidity
    • Max 80{2f0723f887a354cc475f60105463a015dba2a800b5f9a6ba56cece8d87b4eca5} relative humidity up to 31ºC decreasing linearly to 50{2f0723f887a354cc475f60105463a015dba2a800b5f9a6ba56cece8d87b4eca5} at 40ºC
  • Weight
    • 550g
  • Size
    • 160mm (W) x 110mm (H) x 65mm (D)
